Technical Specifications

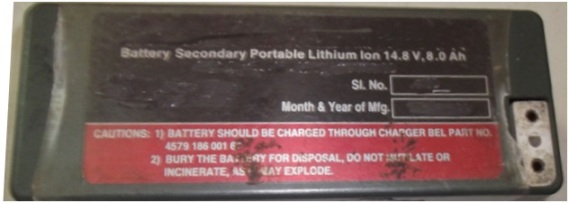

1.(a) Type of Battery : Rechargeable Sealed Lithium Ion Type
  (b) Battery Dimensions (mm) L: 186.5 # 2.0 W : 70.6 # 1.0 H : 65.0 # 1.0
  ( c ) Battery Weight : : 1.5 kg (max)
  (d) Number of cells connected in series parallel combination :16 ( 18650 )
  (e).Type of cells used : Sealed Cylindrical 18650 size with insulating sleeves & spot welded inter cell connections.
  (f).Outer casing: Moulded with sealed Glass filled Nylon container
  (g) .Type of Termination: Terminated in 2 pole plug (female) for discharging and a three pin socket for charging.
  (h) Battery Voltage (a) Rated Nominal Voltage: 14.8 V (b) Voltage after charge: 16.V ( Max ) ( C ) End of discharge Voltage : 12V for capacitor discharge, 12 V for use with Radio set
2. Rated Ah capacity at Room Temperature: 8Ah at 1.6 A rate of discharge up to 12V
3. Service Life at Tx-Rx ratio of ( 30 Sec : 270 Sec ) : Min 7.5 hrs.
4. Temperature range for storage: 20 deg Celsius to plus 40 deg Celsius
5. Temperature range for Operation:
  (i) Charge: 0 deg Celsius to plus 40 deg Celsius
  (ii) Discharge: 0 deg Celsius to plus 55 deg Celsius
6. Shelf Life: 2 years
7. Cycle Life: > 300 charge/discharge
8. Recommended Charging rates and duration of Normal Charge:
  (i) At 8 AH constant current rating for one hour or 4 AH for two hours or 1.6A current rating for five hours.
  (ii) Recommended Charger: Battery Charger with BEL Part No4579 186 001 76

Other Variants

7.2V 1.5AH LVP 285 | 12V 10 AH VHF Tx/Rx CVLP 206
