Dhayal Tech offers various charger configurations like Float-cum-Boost Charger with dropper diodes, Dual Redundant Systems, Float & Float Cum Boost Charger, Dual Float-Cum-Float Boost Charger System and Multiple charger system with redundant (standby) charger etc...
However, needs of proper battery charging are always kept in mind to get the best state of charge and life of the battery bank used.
We do design, assemble, manufacture and supply of varies types of battery packs and battery chargers as per the specifications and customer requirements. The ranges includes from any voltage and any currents ratings with varies technologies.

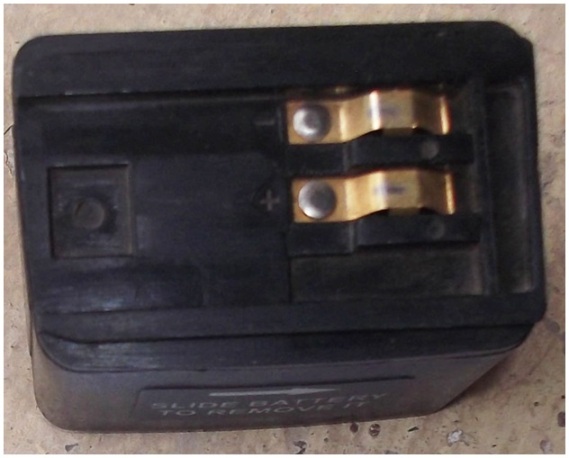

1. Type of Battery: Rechargeable Li-Ion Type
2. Battery Dimension: L 54.7 plus or minus 1 mm W 35.8 plus or minus 1 mm H 45.3 plus or minus 1 mm
3. Type of cells used: Sealed Prismatic 103450 Size with insulating sleeves & spot welded inter cell connections
4. Battery Weight: 0.13 Kg ( Max )
5. Number of cells to be used: 2
6. Outer Casing: Molded PC ABS Black & Color container
7. Battery Voltage: (a) Rated Nominal Voltage: 7.2 V (B)Voltage after Charge 8.4v Max (c) End of Discharging voltage: 6V for use with Radio set
8. Type of Termination: Terminated in 2 Pin flashed terminate
9. Rated Ah capacity at Rook Temperature: 1.5 Ah at 0.3 A rate of discharge to 6 V
10. Service life at Tx-Rx-Sx Ratio of 1:1:18 7 hrs ( min ) at 23 deg C plus or minus 5 deg
11. Shelf Life: 2 years
12. Cycle Life: 300 cycles
13. Temperature Range for storage: Minus 20 deg C to plus 40 deg C
Temperature Range for operation: Discharge Minus 20 deg C to plus 55 deg Cel
14. Recommended Charging rates and durations:
Normal Charge: At 8.4 V ( constant 0 with 750 mA current limit for 3.5 to 5 hrs.
15. Recommended Charger: Battery Charger with BEL Part No 1100 017 531 24/ Cat Part No X26130 00 3974
